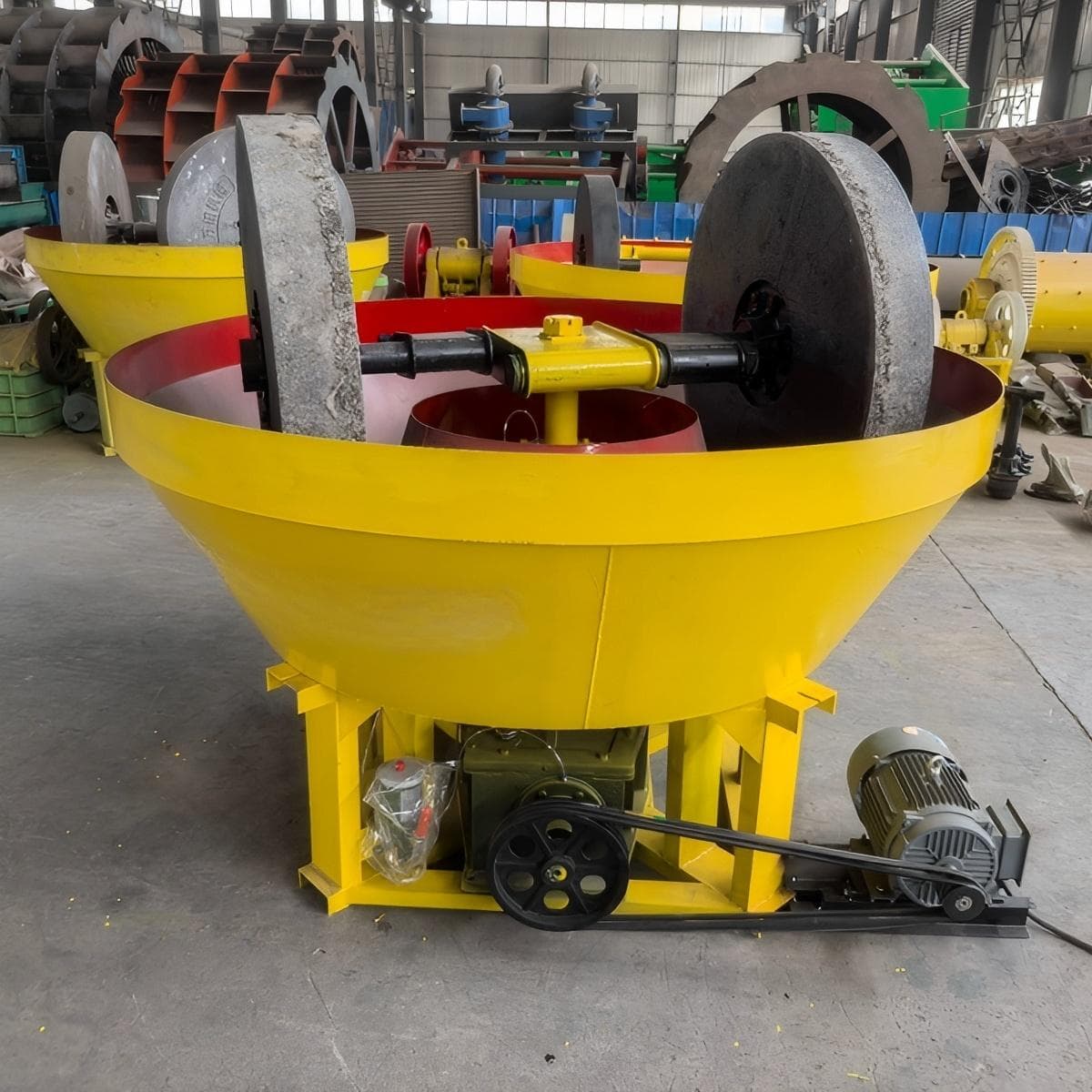

I. Core Structure

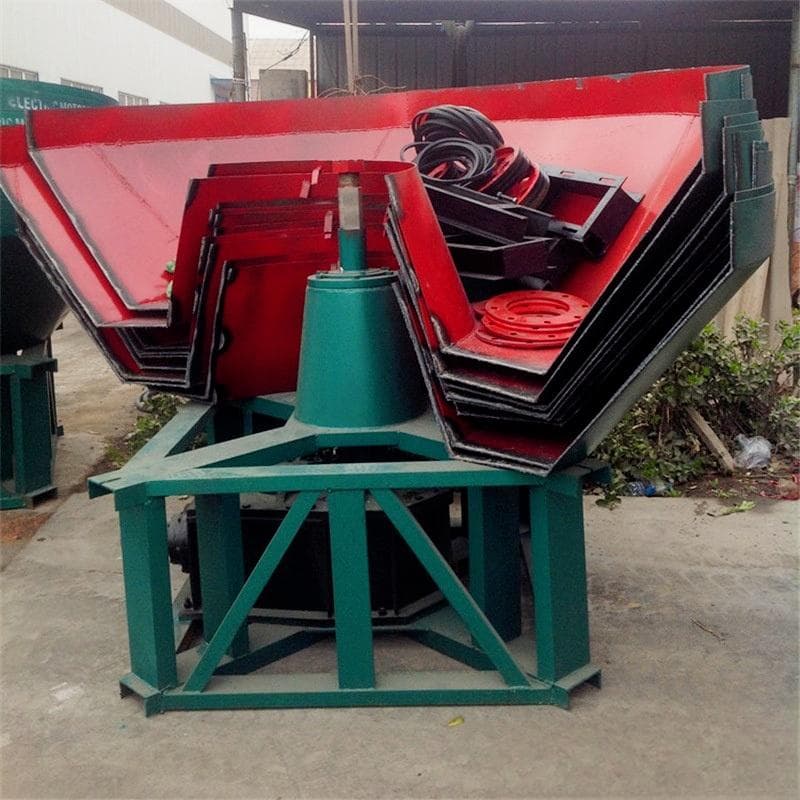

Grinding Pan (Water Basin): Circular trough, made of wear-resistant steel / cast iron, for storing water and materials, with discharge at the bottom.

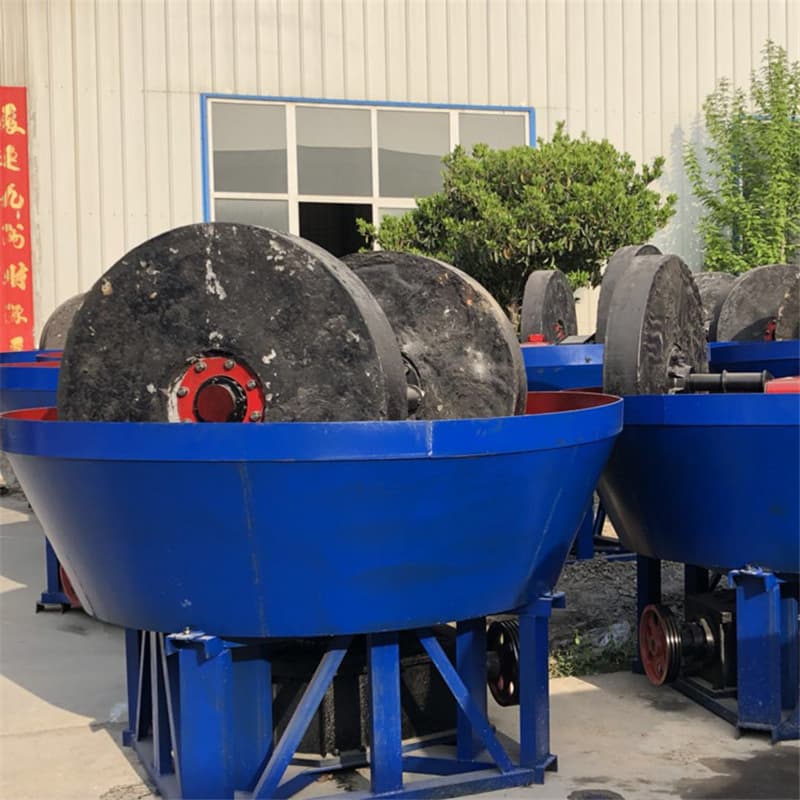

Grinding Wheel (Grinding Roller): 2 heavy solid steel wheels, rotating both externally and internally, using self-weight (several tons) to crush and grind.
Transmission System: Motor + reducer + vertical shaft, driving the grinding wheels to rotate.
Water Circulation: Continuously adding water to form a slurry, reducing dust and aiding in classification.
II. Main Features
High-efficiency Gold Extraction: Dissolves embedded gold without pulverizing it, with high recovery rate, suitable for alluvial / sand gold.
Energy-saving and Low Cost: Power consumption is only 3–30 kW, no need for complex infrastructure, low investment, and quick return on investment.
Simple Operation: Stable structure, easy maintenance, low requirements for power supply / site, suitable for remote / isolated mining areas.
Wet Environmental Protection: Full wet grinding, less dust; sealed trough reduces mercury vapor evaporation.
